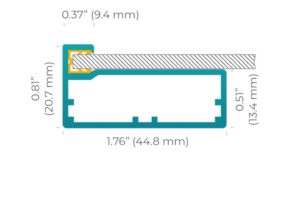

Modena: A Wide Frame Ideal for Larger Cabinets and Closets, with a Slightly Larger Reveal than the Verona
> Insert Thickness: Available in thicknesses including 5/32″ (4 mm) and 2″ (50 mm).
> Customizable Installation: Tailored to exact dimensions and specifications for easy setup.
> Flexible Hardware Options: Standard or custom hinge and handle borings available upon request.
> Interior Design Solutions: Ideal for kitchens, offices, bathrooms, and other interior spaces.
Anode Options
-
- Natural Aluminum
-
- Polished Chrome
-
- Brushed Stainless Steel
-
- Brushed Bronze
-
- Champagne
-
- Matte Black
-
- Brushed Black
-
- Mocha
Inserts and Hardware Options
Applicable opening mechanisms for Wide frame type:
> Minimum distance from frame edge to the center of the hinge hole is 3.15” (80mm).
> Standard distance from frame edge to the center of the hinge hole is 4” (102mm).
> Standard Hinge hole diameter 35mm.
> We drill for standard hinge borings or custom hinge borings according to specifications.
> Available standard hinges for wide frames.
> Blum Aventos HF
> Blum Aventos HS
> Blum Aventos HL
> Blum Aventos HK-XS
> Blum Aventos HK-S
> Blum Aventos HK-TOP
> Hydraulic Lift Up System
* We drill for any Blum Aventos system
* Aventos system not included
